In 1914 the Electric Railway Journal published an article on the Columbus double-deck streetcar.  This article is heavily influenced by the manufacturer and was printed before it became apparent that it was not going to be successful for the Columbus Railway, Power and Light Co.  Here you can learn all about #1000.

Stepless Double-Deck Car for Columbus, Ohio

        The Writer Explains the Traffic Conditions in Columbus, Compares the Cost of Different Transportation Units and Describes the Car Selected as Most Suitable for the Service

By ARTHUR ST. GEORGE JOYCE, E.W. CLARK & COMPANY, PHILADELPHIA

        Westward the trail of the modern "double-decker" takes its way.  Pittsburgh and New York started the innovation, Washington followed suit, and now Columbus, Ohio, has one of the cars in operation along its principal business street.  There are certain features about the Columbus car which commend it to the attention of those interested in the problem of providing the maximum capacity at a minimum operations outlay.

        Traffic Conditions at Columbus

        The street railway situation in Columbus differs form that of any other city in the country in having only one street along which there is traffic congestion.  Into the electric railway cars that traverse this street there crowd during the rush hours almost all the persons in Columbus who want to  ride to or from their homes and places of business.

200dpi jpg (109K) 1000-1

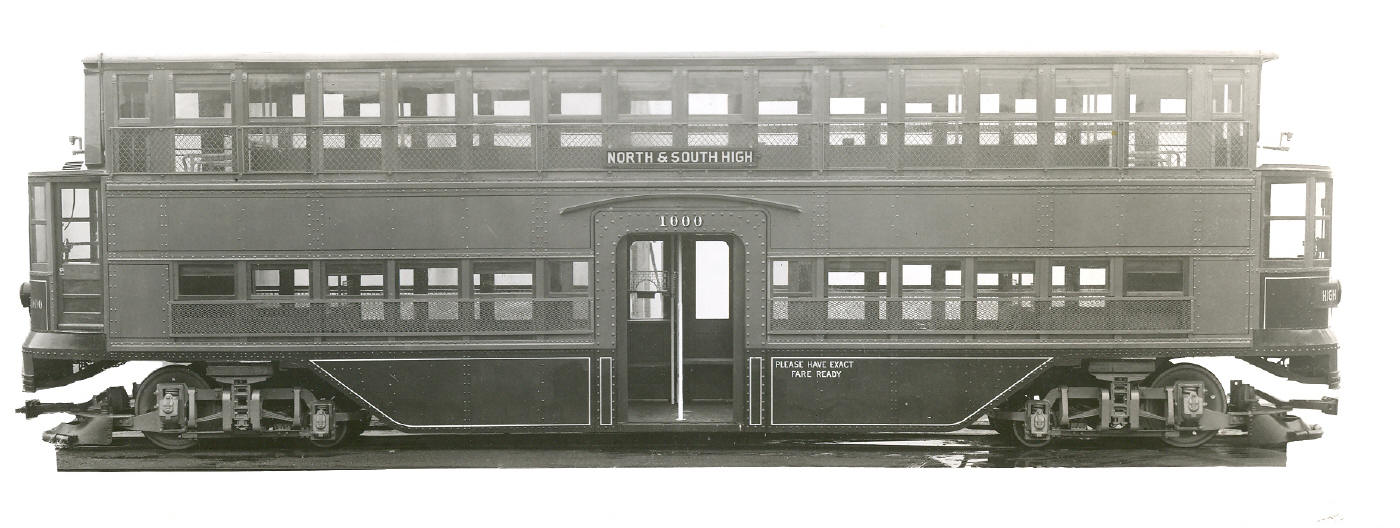

Columbus Double-Deck Car - Side View of Car

        During the  morning and evening rush hours traffic congestion on High Street throws all the traction lines of the Columbus Railway, Power & Light Company off schedule, since ten out of the sixteen routes operated by the company converge on that thoroughfare through its busiest section - Broad Street to Long Street -a distance of only two blocks.  In an effort to relieve this congestion, several years ago, the company got permission from the municipal authorities to re-route some  of the lines so that they traversed the next parallel street east and west of congested High Street.  The riding public, however, had become so accustomed to "taking the High street cars" that it refused to violated traditions and declined to patronize any other line.  So the relief plan was abandoned.  The situation which confronts the company has become more serious each year.  Two-car train operation was recently tried , but this did not prove satisfactory because of delays due to long stops.  Again, the operating expenses of the two-car plan were considered too large, since, with seating capacity of only eighty passengers, the train required a crew of from three to four men to operate it.

        The Columbus Railway, Power & Light Company, managed by E.W. Clark & Company, Philadelphia, operates under a franchise which demands next to the lowest unit fare charged by any company in the country.  It is obliged to furnish eight tickets for a quarter with free transfers.  It has become imperative, therefore, for the company to provide a car having the largest carrying capacity coupled with the greatest degree of efficiency.  The low-level stepless double-deck car was decided upon as the type which most nearly comes up to the requirements.

Comparison of Operating Units

        The reasons for choosing double-deck operation are contained in the following comparative table, which contrasts the operating expenses, initial cost and carrying capacity of the double-deck car with other types.

        The contrast with the single-ended combinations does not mean much as far as Columbus is concerned, since there are very few loops there.  It is only when loops are numerous that this scheme of operation can be used economically, because without loops annoying delays result from switching movements at terminals.

Comparison showing Cost and Efficiency of Different Types of Operating Units

  Double-deck Single Motor Car Two Motor Cars with multiple Unit Control Single-Ended Two-Car Trains, Both Motor Cars One Motor Car, one Trailer, stepless

-------------------------------------------------------------------------------------------------------------------

Cost of equipment (estimated) $6,500 $4,903 $9,933 $8,773 $7,203
Seated Passengers 83 40 80 80 100
Seated and standing passengers 171 100 200 200 210
Total weight without passenger load, lb 46,000 35,773 71,546 68,209 61,773
Depreciation per train mile in cents 1.100 .830 1.681 1.485 1.219
Cost of energy in cents per  kW-hour 1.602 1.144 2.288 2.038 1.976
Maintenance in cents per mile 2.058 1.470 2.940 2.940 2.940
Platform wages in cents per mile 5.227 5.227 7.841 7.841 7.841
Total cost in cents per train mile 11.121 9.526 16.483 15.835 15.232
Cents per passenger capacity per train mile 0.0650 0.0952 0.0824 0.0792 0.0725



        It will be noted also that the wages paid the conductor and motorman on the new double-deck car are the same as those of the single-motor car and represent a much smaller outlay than the sums paid to operators of the other types.  The cost per passenger capacity per train mile is lower than that of the other contrasted types.

        Selection of the double-deck car was also influenced by these economic features:

bullet

Additional  safety to passengers by elimination of dangers incident to entrance and exit.

bullet

Greater convenience in entering and exit.

bullet

Improvement in working conditions of motormen and conductors.

bullet

Better sanitation through scientific ventilation.

bullet

Elimination of dangers due to premature starting of cars, since they cannot start until  the doors have been shut.

bullet

Greater facilities for passengers who want to smoke

bullet

Traffic congestion reduced by increased of almost 100 per cent in carrying capacity per foot of street occupied.

bullet

Decreased maintenance and operating expenses in the handling of passengers.

200dpi jpg (158K) 1000-3

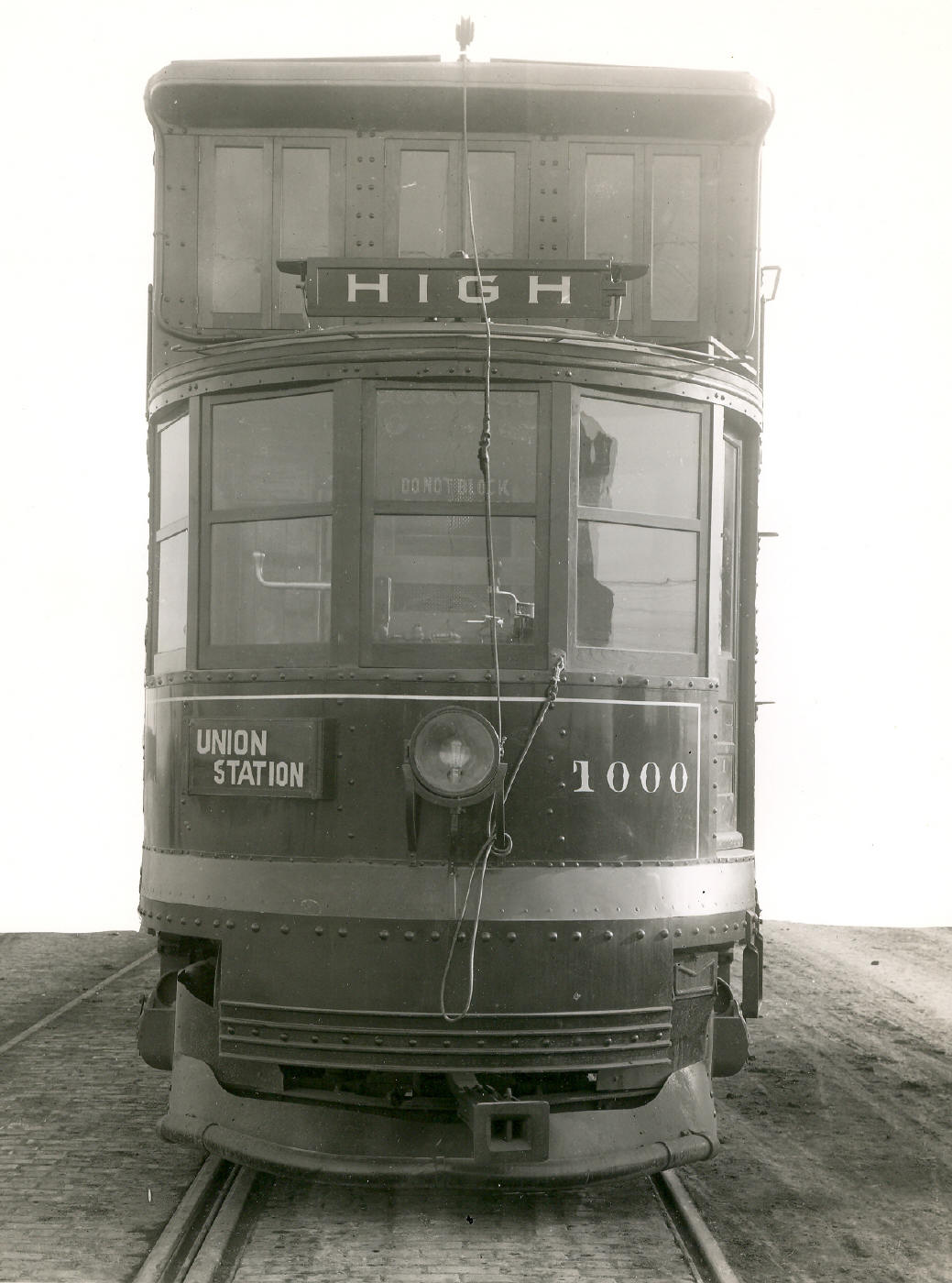

Views of Front of Car, Showing Motor-

man's Cab and Fender Arrangements.

General Features

        The new car, built by the J.G. Brill Company, is 45 ft. 6 in. long over all, having an extreme width over the belt rails and eaves of  8 ft. 3 in.  The trucks are on 29-ft. centers.  The framing throughout is of rolled-steel or pressed-steel sections.

        The lower-deck floor extends from the center of the car to the edge of the semicircular seats at each end, rising slightly from the center to clear  the truck axles.  The space underneath the end and cross seats is not floored and the wheels and truck frames extend up under these seats.  This arrangement permits the truck to swing sufficiently to pass around a curve of a minimum radius of 37 ft.

        The upper deck extends only between the bulkheads which separate the motorman's cabs from the seating space of the lower deck.  The stairways are at the extreme ends.  Each stairway extends up with three steps to a platform and branches to the right and left with four more steps to reach the walkway of the upper deck.  the stairways are provided with hand rails.

      The walkway of the upper deck extends clear around the car except at the stair wells and is 5 ft. 1 1/2 in. above the floor at the  semicircular end seats of the lower deck.  The floor at this point is 19 in. above the rail and is reached by a ramp from the  floor level at the entrance doors.  The floor at the entrance is 11 in. above the rail.  The upper walkway extends over the longitudinal seats of the lower deck, and it is not necessary, therefore, to have it high enough to permit a man to stand erect, it being only 6 ft. 8 1/2 in. above the track  rails.  The seats on the upper deck are placed at the proper elevation to provide ample headroom along the center aisle of the lower deck, but are so high that it is necessary to provide a footboard along the full lengths of the seats, which, in  giving space for passengers' feet, keeps them from blocking the walkway.



200dpi jpg (302K) 1000-inter-1

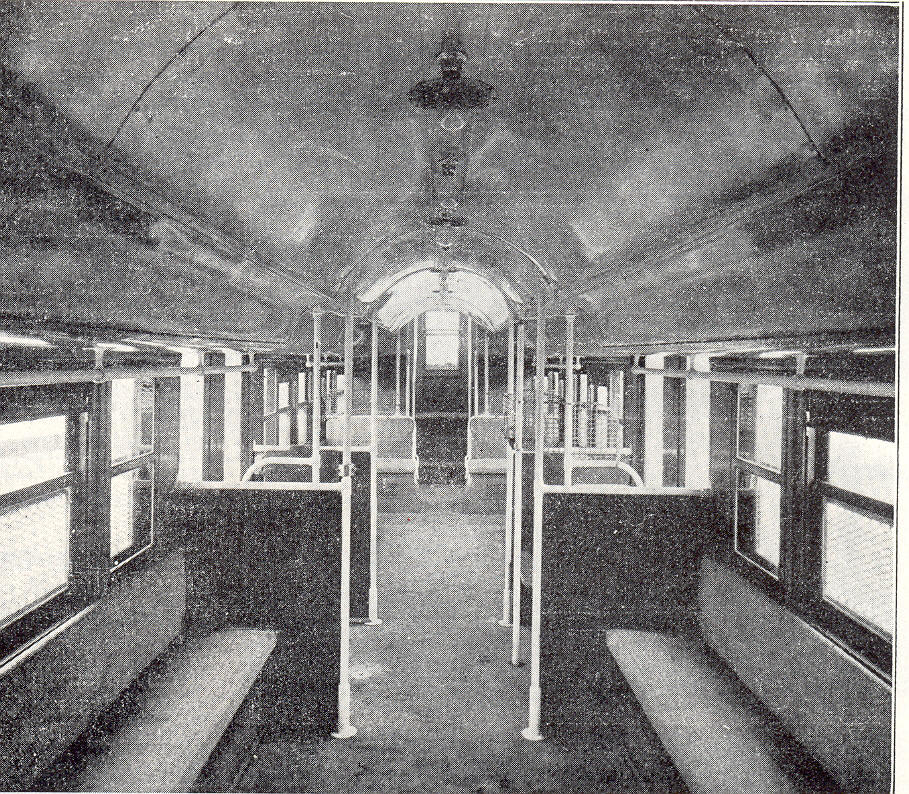

Lower Deck Interior

        The upper deck is closed [in,] in  winter and will be opened during the summer months by taking out the removable sash and sections of sheathing.  The ends of the  upper deck are protected against the weather by extension of  the first-floor bulkheads, and are fitted with outward-swinging windows.  The upper-deck roof is of agasote covered with No. 6 cotton duck.  The lower deck  headlining is of agasote.  Advertising card racks are provided for both decks.

        The floors of both decks are of ling-leaf yellow pine covered with 1/4-in. agasote.  Carborundum safety treads are used at the center doorways and at the doorways of the motorman's cabs, and narrow sections of this tread are used to face the stairways steps and the front edge of the upper-deck foot seats.



200dpi jpg (139K) 1000-inter-2

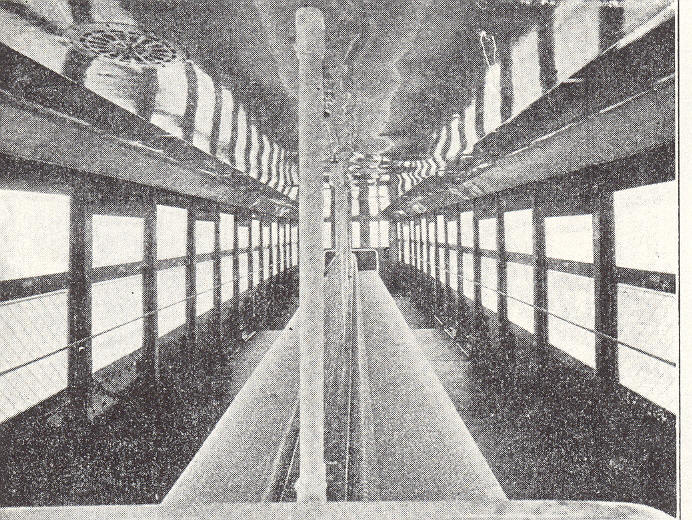

Interior of Upper Deck

        The car is equipped with Brill maximum traction  trucks of the low-bolster type with outer bolster bearings outside of truck side frames.  the axles are of Carnegie heat-treated steel and the wheels of Carnegie rolled-steel single-wear type.  The driving wheels are 33 in. and the pony wheels of 18 in. diameter.  The  truck wheelbase is 5 ft.  The brakes are the inside-hung type.  Each truck is designed to receive one out-side-hung motor.

Motor and Control Equipment - Air Brakes

        Two GE-201-A motors are used with the manufacturer's grade L gears and grade K pinions.  The  gear ratio is 71:15.  The motors are rated at 55 hp at 500 volts or 65 hp at 600 volts.  The  equipment is designed for a schedule speed of 8.5 m.p.h. with seven stops per mile, but the gear ratio will give a maximum speed of approximately 25 m.p.h. on level tangent track,  all calculations were made on a total weight of the car, with eighty-eight seated and eighty-three standing passenger, of 69,085 lb.

        The control equipment is suitable for double-ended operation with K-36 controllers.  The contactors are fitted with interlocks in connection with  the control system in order to interlock the latter with the operation of the car doors.  The motor rheostats are of special design in view of the low level of the car.

        GE straight air brake equipment is used.  the C-P-27-A compressor has a piston displacement of 15 cu. ft. per minute when operated against a tank pressure of 90 lb. (gage) per sq. in.  The equipment is provided with two brake cylinders, also five reservoirs of special  dimensions, because of their location under stairways and longitudinal seats of the lower deck.

SeaTing arrangement and weights per passenger

        The seats of both decks are longitudinal except for the semicircular seats and the two cross seats at each end of the lower deck.  The seats on the upper deck are set back to back and the feet of the passengers seated on them are almost directly over the heads of the passengers who are seated on the longitudinal seats of the lower deck.  The latter seats extend from  the center entrance space to the end wells of the car.  At the end of these seats are two permanent cross seats.  The semicircular end seats extend from the cross seats around the end wells.  All seats are rattan.

        On a basis of  17 in. per passenger, the upper deck will  seat forty-two passengers and the lower forty-one, making a total of eighty-three.  It is  expected that the car will take care of 171 seated and standing passengers.  The total weight of the car completely equipped is approximately 46,000 lb., giving a weight per seated passenger of 554.2 lb. and  a weight per passenger standing and seated of 269 lb.

Entrance and exit facilities

       The only opportunity for entrance and exit is by the center side doors.  These doors are made in halves.  the total door width is 50 in. and is  divided into two passages by a rail so that two streams of passengers may leave or enter the car at once.  The doors are electro-pneumatically operated and are controlled by the conductor.

        The entire center of the car for a width of 50 in. is devoted to receiving and discharging passengers.  The conductor is seated on a folding seat along the unused center door and before him is a swinging change desk.  Space for ten passengers is provided on the loading platform.  Entering passengers line up before  this desk, and after depositing their fares in the fare box pass on toward the seats and stairways at both ends of the car.  The door and step devices were supplied by the Prepayment Car Sales Company, new Your, which also controls the Hadley-Doyle stepless car patents incorporated in this car.

Ventilation and heating

        A forced-draft ventilator system is provided for the ventilation of both decks.  The foul air is drawn through ventilators which are placed along the center line of the ceilings of both decks and is carried along longitudinal ducts to the motor-operated fan at the end of the car, where it is discharged.  The duct for the lower deck is carried between the seat backs of the upper deck and at the center of the car a raiser connects this duct with the one running along the roof of the upper deck.  Heat  for the car is supplied by electric heaters, fourteen being installed in the lower deck and twelve in the upper deck.
