CRP&L Co. Cars 313-322

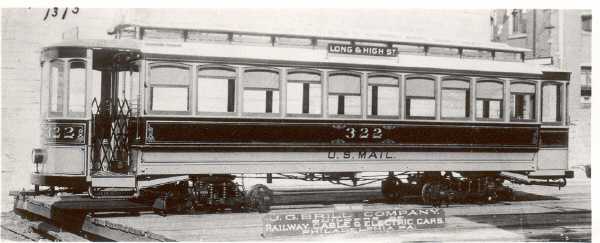

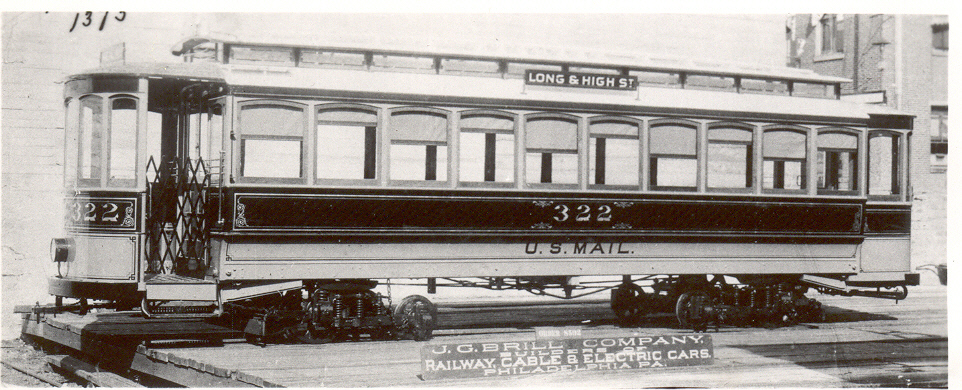

1898 Builder's photo of Car 322 on the transfer table at
the J.G. Brill Co. in Philadelphia. The car is sitting on shop trucks. Photo from the BJ Kern
Collection.
313-322 - Ten double truck closed cars
built by the J.G. Brill Co. during 1898.
|
Number |
In service |
Body |
Length |
Length over bumpers |
|
313-322 |
May & Nov. 1898 |
Closed |
28' |
32' |
|
Width |
Height |
Seats |
Seats capacity |
Weight |
|
7' 6" |
10' 9" |
2 Long, Center
Aisle |
40 |
28,758 |
|
Builder |
Trucks |
Wheel
base |
Wheel
diameter |
Motors |
|
J.G. Brill Co. |
Barney & Smith
C |
4' |
33"/18" |
2 GE-67 |
|
Motor
HP |
Controllers |
Trolleys |
Date scrapped or
out of service |
|
|
76 |
2 GE-K-10 |
1 |
OOS
11/1/1933 |
|
Remarks: 317 destroyed at Milo car house fire 8-22-1930. Car 320
was hit by a cut of cars at the N&W crossing on Cleveland Ave, 12-2-1919.

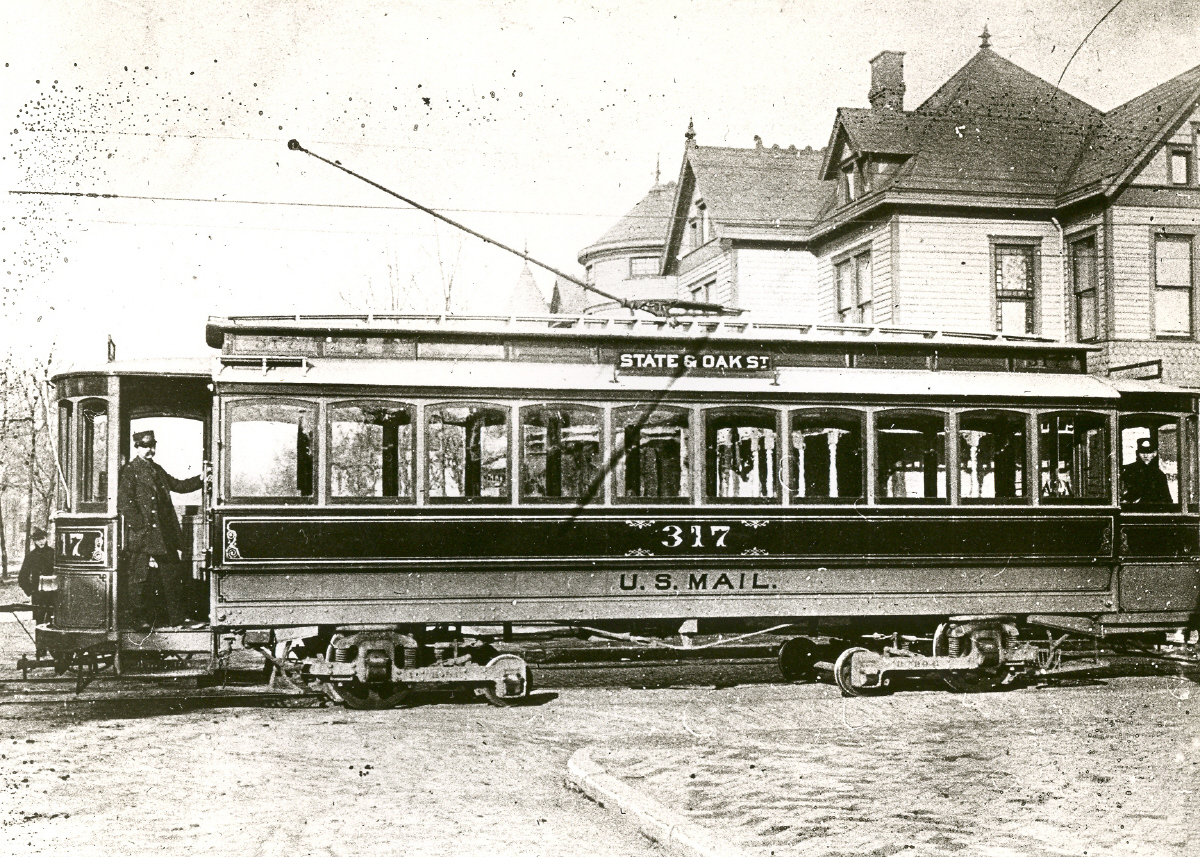

Car 317. There were no doors on the
platform. A cold job in the winter. Photo from the DAK Collection.

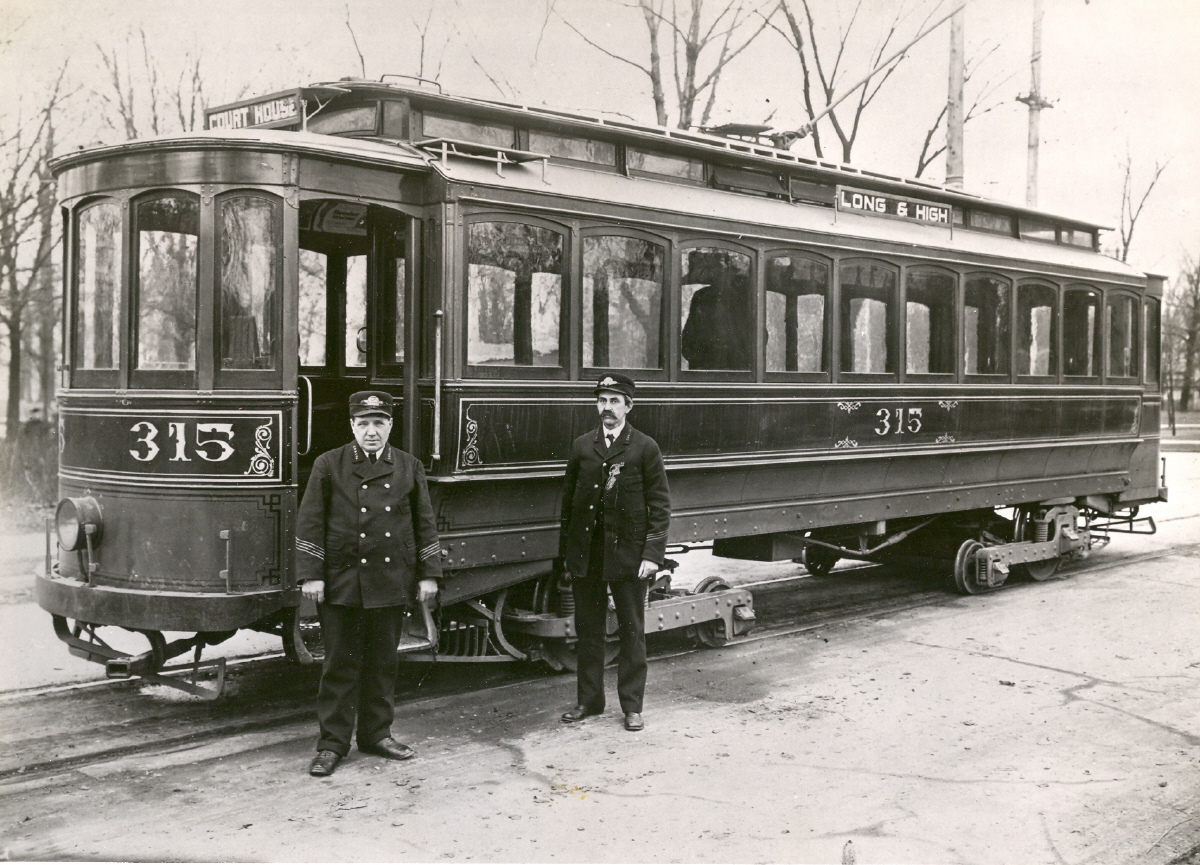

Car 315 still
new. Photo from the DAK Collection.
